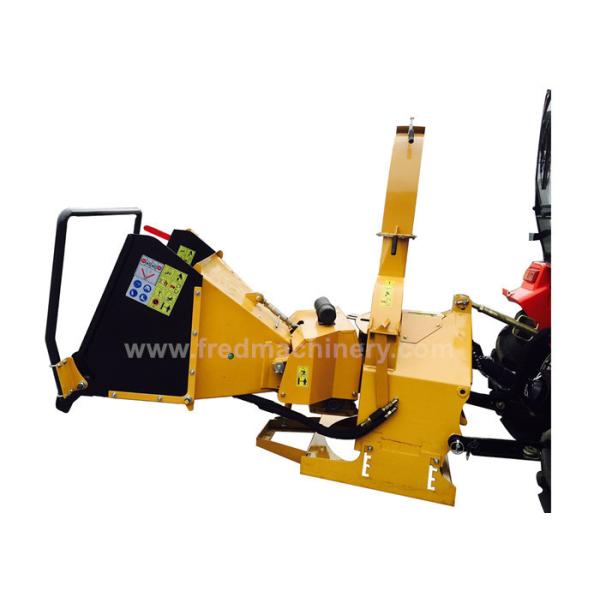

3 Point Wood Chipper With 5 Inches Chipping Capacity For 20L Hydraulic Oil Tank
The Fred BX52R wood chipper with it's max. 5 inches chipping capacity.
It has a self - contained 20L hydraulic oil tank, no need any hydraulic outputs from tractor.
The Fred BX52R chipper is used for grinding branches and tree trunks up to 12 cm in diameter.
The generated chips are thrown by a tube rotated by 360 ° in relation to the chipper base. Massive shield equipped with 4 rotary knives, double-edge, hardened tool steel, Durable Chromium CR-12, sharpened + one stationary knife.
The chipper with a three-point suspension system is designed to work with a 30 hp agricultural tractor. The material collecting system consists of two hydraulically driven cogged shafts. The material retrieval mechanism has a 10-degree speed regulator and a material dispensing function.
The hydraulic system drive comes from the tractor's hydraulic outlets (quick couplings).
The chipper has a disc locking latch that facilitates the replacement of knives.
The machine is equipped with an adjustable base, which makes it easy to set the height of the chipper relative to the tractor's drive.
Thanks to the folding throat, it is possible to quickly and easily change dimensions, which saves space during transport.
The chipper is equipped with a number of improvements to improve the safety and productivity of work according to the latest EU directives. It has a new generation of hydraulic system, protection and covers. It has a blockade of continuous operation, feeding mode, neutral mode and material withdrawal from the throat.
Disc chippers, unlike drum chippers, do not load or damage the engine in the tractor and do not cause faster wear of the clutch.
The cutting disc overcomes the cutting resistance of the inertia force - the weight of the cutting disc itself is 67 kg. The drive is transferred from the tractor through the PTO shaft, which is equipped with a safety pin, which is cut in the event of too much load on the machine and disconnects the direct drive.
In addition, we adjust our disc with breakers (shovels), shredding the obtained framework to a value of 20-50 mm. The chipper is additionally equipped with shield ventilation.
All bearings protected against dust, stripping, etc. are lubricated by easily accessible calendars. Includes all hooks, bolts, etc.
You buy a machine prepared to work with the Operator’s manual and CE certificate!
